Air winches are powerful tools used to lift, pull, or tension loads in demanding industrial environments. Also known as pneumatic winches or air powered winches, they use compressed air to deliver controlled pulling or lifting power without relying on electricity.
Because air winches are often used in tough applications, choosing the right model is an important part of the lift or pull plan. Load weight, line speed, wire rope length, drum capacity, air supply, and whether the winch will be used for lifting or pulling all affect which air winch is right for the job.
In this blog post, we’ll explain how to choose an air winch and review the key factors to consider before renting one for your next project.
An air winch is a winch powered by compressed air. It uses an air motor to rotate a drum, which winds or unwinds wire rope to lift, pull, or tension a load.
Air winches are commonly used in construction, industrial maintenance, utilities, marine, power generation, oil and gas, and other heavy-duty applications. They are often selected for jobs that require reliable pulling power, controlled movement, and continuous operation in demanding environments.
Depending on the model and application, an air winch may include features such as automatic brakes, manual brakes, clutches, drum guards, mufflers, air filters, lubricators, and regulators.
Before choosing an air winch, start by answering three important questions:
These questions help determine the required capacity, speed, drum size, wire rope length, and air supply. The more details you know about the application, the easier it is to select an air winch that is properly rated for the job.
When an air winch is used for lifting, the primary concern is preventing the load from falling. The winch must be rated for lifting, properly configured, and matched to the weight of the load.
Important lifting considerations include:
For lifting applications, wire rope is commonly selected based on a 5:1 design factor. The D/d ratio should also be considered, where D equals the winch barrel diameter and d equals the wire rope diameter. A larger D/d ratio generally supports better wire rope life and flexibility. Check out this blog post about the D/d ratio to learn more on this topic.
Air winches are also used for pulling applications where a load needs to be moved horizontally, tensioned, or repositioned. Pulling applications are different from lifting applications because the winch is not directly supporting a suspended load.
When choosing an air winch for pulling, consider:
Using pulleys or sheaves can increase pulling capacity or help redirect the line of pull, but the full rigging arrangement must still be evaluated to make sure all equipment is properly rated.
Air winch capacity and speed change depending on how much wire rope is on the drum.
A winch has its highest pulling or lifting capacity on the first layer of wire rope because the rope is closest to the drum. As more layers build up, the effective drum diameter increases, which reduces the winch’s available line pull.
Speed works in the opposite way. A winch typically moves the load more slowly on the first layer and faster on the upper layers because each drum rotation takes up more rope as the drum diameter increases.
In simple terms:
This is why it is important to consider both the pulling force and the wire rope length required for the application.
Thern TA5-24 11,500 lbs capacity Double Drum Air Winch

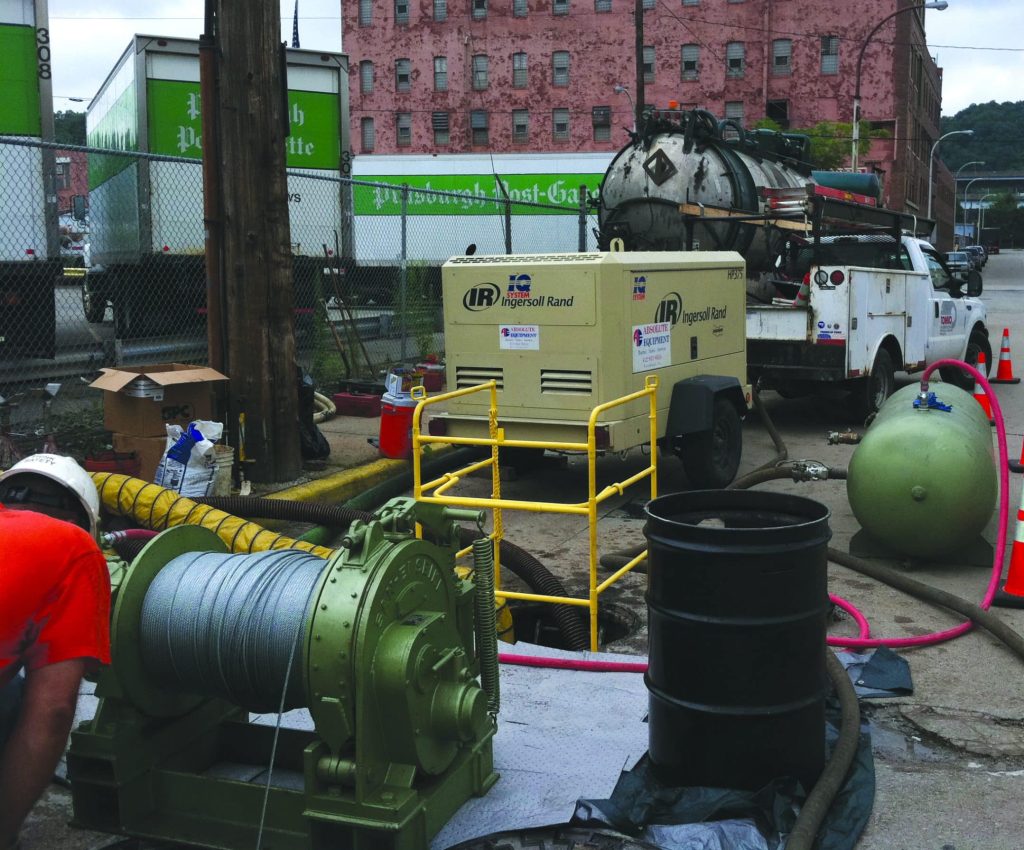

Air winches require a properly sized air supply to perform as expected. Most air winches are rated based on a specific operating pressure, often 90 psig at the winch inlet during operation.
Air consumption is usually measured in cubic feet per minute, or cfm. For continuous operation, the compressor output should match the winch’s air consumption requirements. For intermittent operation, a smaller compressor or air storage tank may be acceptable depending on the application.
Air supply considerations include:
Hoses and fittings should generally be the same size as, or larger than, the winch inlet. Undersized hoses or fittings can restrict airflow and reduce winch performance.
Choosing the right air winch starts with understanding the application. Load weight, required speed, wire rope length, lifting or pulling requirements, air supply, and jobsite conditions all affect which winch is appropriate for the work.
For lifting applications, the winch must be properly rated to support the load safely. For pulling applications, crews should consider friction, distance, line pull, rope layers, and whether pulleys or sheaves will be used. Air supply is also critical, since the winch can only perform properly when the compressor, hoses, fittings, and air pressure match the equipment requirements.
For help choosing the right air winch for your next lifting or pulling application, contact LGH today or call 800-878-7305 to speak with a rental specialist.
