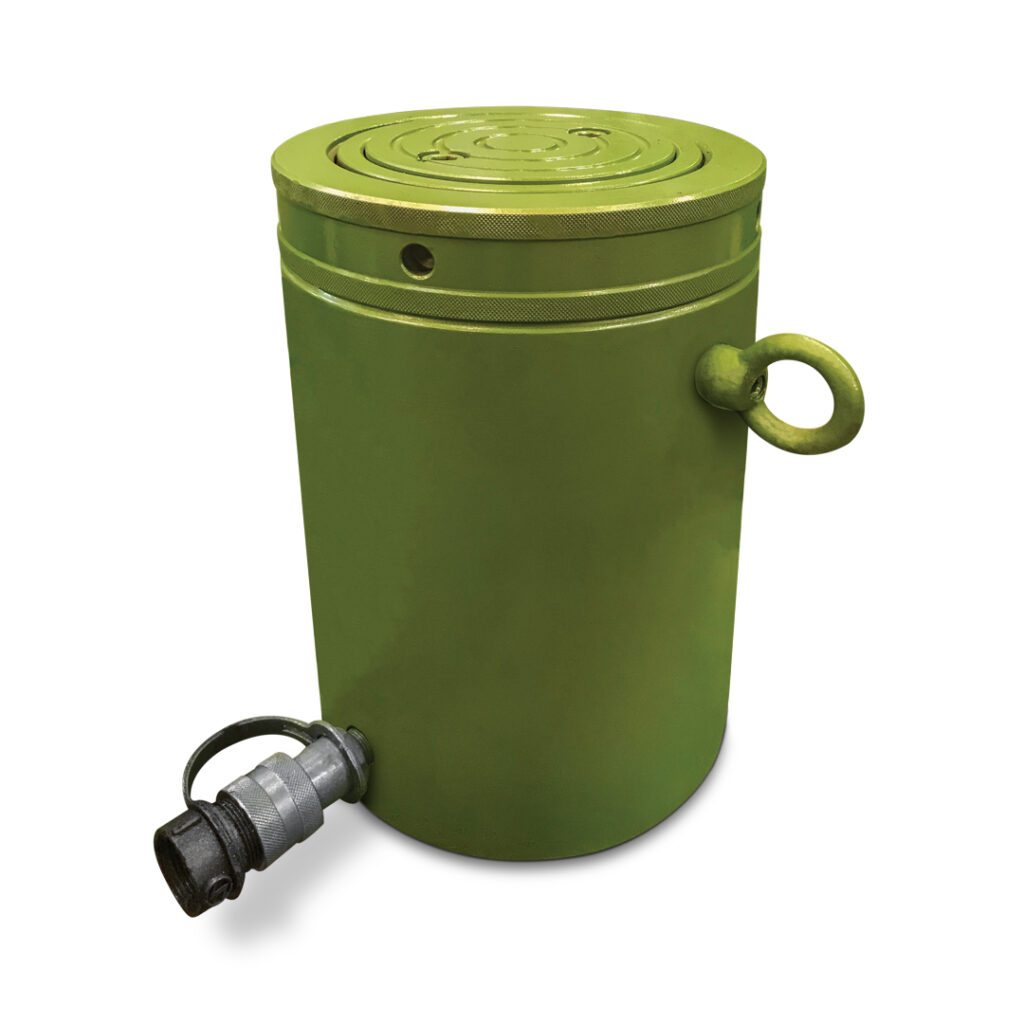

The Enerpac CLL-1506 150-ton capacity lock nut hydraulic cylinder rental from LGH.
Lock nut hydraulic cylinders are used for heavy lifting applications where a load needs to be raised and mechanically held for an extended period. These cylinders are commonly used in bridge work, foundation repairs, heavy equipment lifting, structural support, industrial maintenance, and other projects where controlled lifting and load holding are required.
The key feature of a lock nut hydraulic cylinder is the mechanical lock nut. Once the load is raised, the lock nut can be tightened against the cylinder body to help hold the load mechanically instead of relying only on hydraulic pressure.
LGH rents lock nut hydraulic cylinders from Enerpac and Simplex, including low-height, pancake-style, and high-tonnage models. This guide explains how these cylinders work, what common mistakes can cause damage, and what best practices can help crews use them properly.

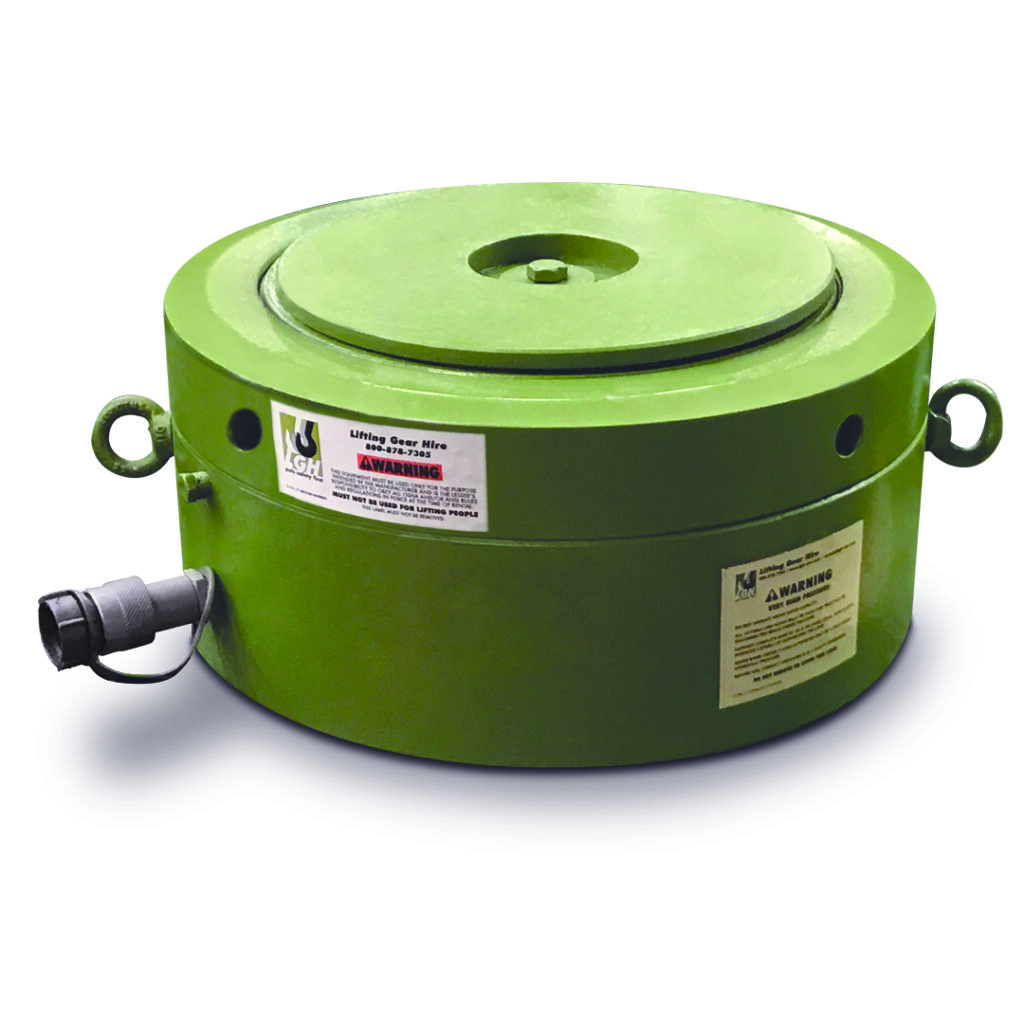

TheEnerpac 500-ton model CLP-5002 single-acting pancake-style lock nut hydraulic cylinder rental from LGH.
Lock nut hydraulic cylinders are hydraulic lifting cylinders with a threaded plunger and lock nut designed for mechanical load holding. After the load is lifted, the lock nut is turned down to support the load mechanically.
This makes them useful when a load needs to remain raised for a longer period than a standard hydraulic cylinder application. The hydraulic system raises the load, while the lock nut provides a mechanical holding method once the load is in position.
These hydraulic cylinders may also be called lock nut cylinders, hydraulic lock nut cylinders, lock nut jacks, or hydraulic lifting cylinders.

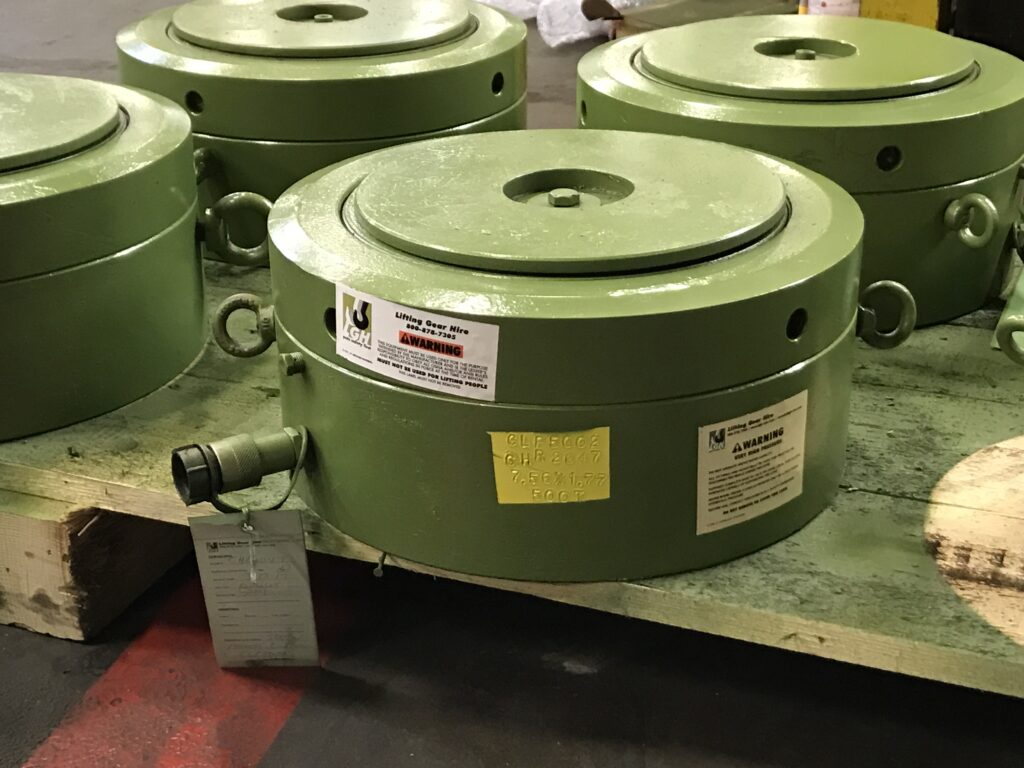

A 400-ton hydraulic cylinder from LGH.
Lock nut hydraulic cylinders are useful when crews need controlled lifting with mechanical load holding. Standard hydraulic cylinders are designed to lift, push, or position a load, but they should not be treated as the only support for an extended load-holding application.
These hydraulic cylinders give crews a way to raise the load and then mechanically secure the cylinder position.
Common uses include:
The lock nut does not remove the need for proper cribbing, blocking, planning, or inspection. It is one part of a safe lifting and load-holding setup.
Lock nut hydraulic cylinders are rugged tools, but they can be damaged when used improperly. One of the most common issues is thread damage. Because the lock nut depends on the cylinder threads, damage to those threads can affect the cylinder’s ability to hold a load mechanically.
Common causes of damage include:

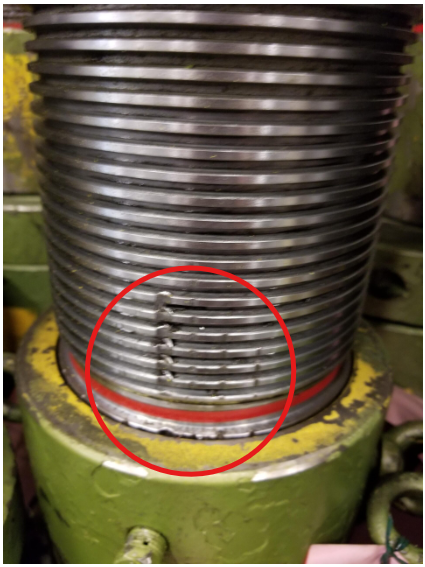

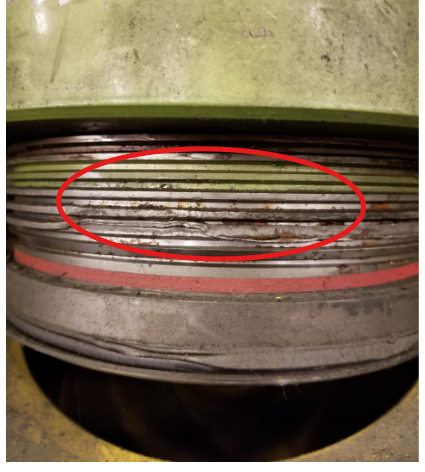

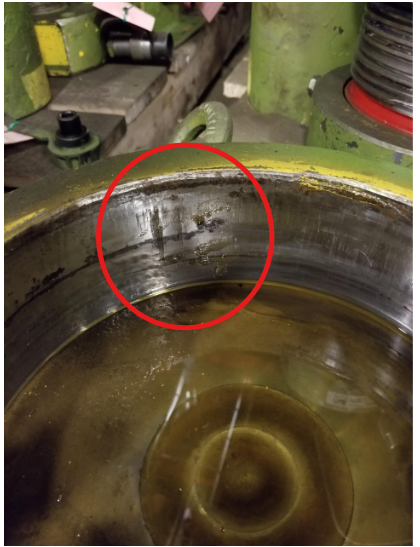

Thread damage can flatten or score the cylinder housing. This may disable the lock nut function, damage seals, create hydraulic leaks, or cause the cylinder to be removed from service.
To help protect the equipment and support a controlled lift, follow these best practices:
A controlled setup helps protect the load, the cylinder, and the crew.
Lock nut hydraulic cylinders may be a good fit when a load needs to be lifted and held in position for an extended period.
Consider using these hydraulic cylinders when:
The right model depends on the capacity, stroke, height, return type, surface conditions, and application requirements.
LGH rents lock nut hydraulic cylinders from Enerpac and Simplex, including the Simplex CLP Series, Enerpac CLL Series, Enerpac HCL Series, and Simplex RLN Series.
Our rental specialists can help review your load weight, required stroke, clearance, lift height, base conditions, cribbing plan, and jobsite requirements to determine the right cylinder for your application.
Whether your project requires pancake-style lock nut cylinders, high-tonnage hydraulic cylinders, Enerpac lock nut cylinders, Simplex lock nut cylinders, or related hydraulic equipment, LGH can help match the right rental equipment to the job.
Lock nut hydraulic cylinders are valuable tools for heavy lifting applications where mechanical load holding is required. Their lock nut design allows the load to be held mechanically after lifting, making them useful for structural work, equipment maintenance, bridge lifting, foundation support, and other extended load-holding applications.
Common damage often comes from side loading, overstroking, uneven lowering, poor base conditions, or dirt and debris entering the cylinder. By using a solid base, keeping the cylinder plumb, watching stroke limits, using cribbing, and following manufacturer instructions, crews can help protect the equipment and support a more controlled lift.
For help choosing hydraulic cylinders for your next project, contact LGH today or call 800-878-7305 to speak with a rental specialist.
Lock nut hydraulic cylinders are hydraulic lifting cylinders with a threaded plunger and mechanical lock nut. After the load is raised, the lock nut can be tightened to mechanically hold the load in place.
They are used for heavy lifting and extended load holding applications, including bridge work, foundation support, structural lifting, machinery maintenance, and heavy equipment positioning.
The lock nut provides mechanical load holding after the cylinder raises the load. This helps reduce reliance on hydraulic pressure alone during extended support applications.
Lock nut hydraulic cylinders should generally be kept plumb and aligned with the load. Side loading can damage threads, seals, plungers, and cylinder housings. Always follow the manufacturer’s instructions for allowable loading conditions.
Overextending or overstroking a cylinder can damage seals, cause leaks, or create more serious equipment failure. Users should watch stroke indicators and never exceed the manufacturer’s stroke limits.
No. Lock nut hydraulic cylinders provide mechanical load holding, but cribbing or blocking may still be required depending on the lift plan. Crews should follow the project requirements, manufacturer instructions, and applicable safety practices.
LGH carries several model series, including Simplex CLP, Enerpac CLL, Enerpac HCL, and Simplex RLN lock nut hydraulic cylinders.
