Spreader beams are common throughout the lifting and rigging industry, especially when crews need to lift large, long, wide, or awkward loads. But how do spreader beams work, and why can a hollow modular beam support extremely heavy loads?
The answer comes down to rigging geometry, load distribution, compression, and proper setup.
A modular spreader beam, sometimes called a modular spreader bar, is designed to spread the upper sling legs apart while supporting the load from below. When rigged correctly, the beam works primarily in compression, while the slings carry tension. This allows the beam to stabilize the lift, reduce bending stress, and help control sling angles.
In this blog post, we’ll explain how spreader beams work, why modular systems are so useful, how they differ from lifting beams, and what rigging mistakes crews should avoid.
A modular spreader beam is a below-the-hook lifting device made from interchangeable components. A typical modular spreader beam includes hollow struts, end units, drop links, shackles, and bolts. The struts create the span, while the end units provide connection points for the top slings and lower rigging.
Unlike a fixed-length beam, a modular spreader beam can be adjusted by adding or removing strut sections. This allows crews to configure the beam length for the specific load, pick points, and rigging arrangement.
LGH rents modular spreader beams in a wide range of sizes and capacities. Modular systems can be built in multiple length configurations and are often easier to transport than a one-piece lifting beam of similar span.
Spreader beams work by distributing the load through rigging geometry. The load connects below the beam, while upper slings connect from the beam ends to the crane hook. This creates a triangular rigging arrangement.
In a properly designed spreader beam setup, the top slings pull inward and upward on the ends of the beam. That inward force puts the beam into compression. At the same time, the lower slings support the load from the beam ends.

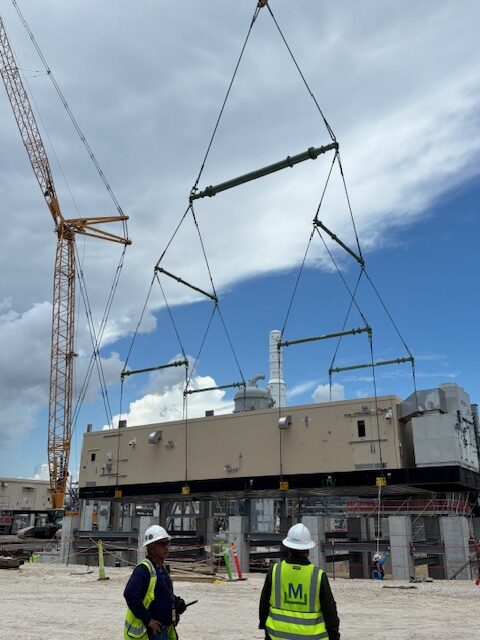

An LNG plant’s motor control center – containing delicate climate-controlled electrical equipment – required a 7-bar lift to ensure precision positioning
This is different from a beam that carries load from the center. Instead of relying on bending strength, a spreader beam relies heavily on compression strength when rigged within the manufacturer’s approved configuration.
That is why spreader beams can often be lightweight compared to the loads they support. The geometry of the rigging helps the system transfer forces efficiently.
The key to understanding spreader beams is compression.
A modular spreader beam is not designed to be loaded from the middle or bent like a traditional lifting beam. It is designed to carry force along its length. When the rigging is configured correctly, the beam resists the inward compressive forces created by the sling angles.
A helpful way to picture this is to think about an aluminum can. If you press straight down on the top of an undamaged can, it can support a surprising amount of weight. But if you press on the side, the can collapses much more easily.
A modular spreader beam works in a similar way. It can handle significant force along its length when the load is applied correctly. But if someone side-loads the beam, wraps slings around the middle, or creates an unapproved center pick point, the beam may experience bending or crushing forces it was not designed to handle.
That is why rigging geometry matters so much.

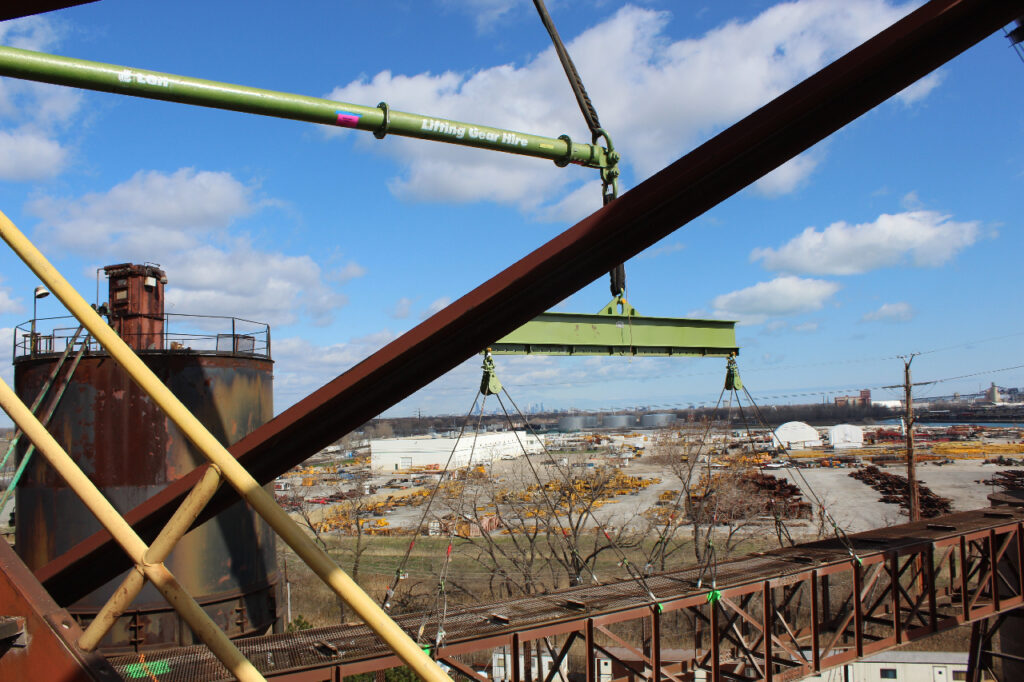

This photo domenstrates an under-the-crane rigging configuration with a modular spreader beam and a lifting beam attached underneath it.
Spreader beams and lifting beams are both below-the-hook lifting devices, but they handle forces differently.
A spreader beam is typically used with upper slings that connect to the crane hook and lower rigging that connects to the load. The beam primarily carries compression, while the slings carry tension. This setup helps spread the lift points apart, reduce sling angles at the load, and stabilize long or wide loads.
A lifting beam is usually picked from a central top point and has lower connection points for the load. Because the lift force is applied from above and the load hangs below, the lifting beam typically carries bending forces. Lifting beams can be useful when headroom is limited, when a center pick is required, or when the lift requires lower connection points along the beam.
In simple terms, a spreader beam is often the better option when crews need to spread rigging points and manage sling angles. A lifting beam may be better when the job requires a center pick, lower headroom, or pick points along the beam.
Modular lifting spreader beam components in the LGH Rental Center.
A modular spreader beam gives crews flexibility that fixed-length lifting equipment may not provide. Because the beam length can be adjusted with different strut sections, crews can match the rigging setup to the load instead of forcing the load to fit a fixed beam.
Key benefits include:
For projects where load dimensions change or where a one-piece lifting beam would be difficult to ship, stage, or assemble, a modular spreader beam can provide a more practical solution.
Sling angles play a major role in spreader beam rigging. As sling angles decrease, tension in the sling legs increases. That additional tension affects the slings, shackles, beam, crane hook, and load connection points. (Check out our blog post to better understand the effect of angles on sling capacity.)
A spreader beam can help improve rigging geometry by spreading the upper sling legs apart and helping keep the lower slings more vertical. This can reduce unwanted horizontal forces on the load and improve stability.
However, spreader beams must still be rigged within the manufacturer’s approved angle ranges. Beam length, sling length, shackle size, drop link orientation, load weight, center of gravity, and pick point spacing all affect the forces in the system.
Before lifting, crews should confirm:
Even when the beam is properly rated, the full rigging system must be checked as a complete assembly.
Modular spreader beams are designed for field assembly, but that does not mean assembly should be casual. The bolts, collars, end units, and struts work together as part of the engineered system.
Many modular spreader beam setups require bolts to be tightened to specific torque values. For example, some common Modulift configurations use 110 ft.-lbs. of torque, while larger-capacity systems may require higher torque values.
Crews should always confirm the correct torque requirement for the specific beam model and configuration. Using the wrong torque value, wrong bolts, or incomplete hardware can compromise the assembly.
The beam may look simple, but every component matters.
A spreader beam may be the right choice when the load is long, wide, heavy, unstable, or sensitive to sling angles. Crews commonly used spreader beams when they need to spread lift points apart, reduce compression on the load, or create a more stable rigging arrangement.
Common applications include:
A modular spreader beam can be especially useful when the required span changes from project to project or when shipping a fixed-length beam would be inefficient.
Our largest and smallest Modulift modular spreader beams
LGH rents modular spreader beams, lifting beams, shackles, slings, hoists, and other rigging equipment for complex lifting applications. Our rental specialists can help evaluate load weight, pick point spacing, beam length, sling angles, headroom, center of gravity, and jobsite conditions to help match the right equipment to the lift.
LGH can provide modular spreader beam systems in a wide range of lengths and capacities, along with corner units for square or rectangular lifting frame configurations.
Whether your project requires a modular spreader beam, an adjustable spreader beam, a lifting beam, or a complete rigging setup, LGH can help provide tested, certified, and job-ready rental equipment.
How do spreader beams work? They use rigging geometry to transfer forces efficiently through compression in the beam and tension in the slings. When rigged correctly, a modular spreader beam can help stabilize long or awkward loads, improve sling angles, reduce bending stress, and provide flexible span options for different lifting applications.
But spreader beams must be used as designed. Crews should never wrap slings around the middle of a modular spreader beam, create unapproved pick points, ignore sling angles, or skip torque and assembly requirements.
For help choosing a spreader beam, lifting beam, or rigging setup for your next lift, contact LGH today or call 800-878-7305 to speak with a rental specialist.
