Choosing the right I beam trolley starts with more than simply matching the trolley’s capacity to the weight of the load. Beam dimensions, available headroom, travel distance, operating frequency, power source, and the type of hoist being used can all affect which trolley is appropriate for the application.
An I beam trolley allows a suspended load to move horizontally along an overhead beam, helping crews lift, shift, and position equipment more efficiently. Depending on the job, that movement may be provided by a manual push trolley, a geared hand-chain trolley, or an electric or air-powered system.
In this guide, we’ll explain how an I beam trolley works, review the main trolley types available, and outline the key factors to consider when selecting the right hoist and trolley combination for your load, beam, and jobsite conditions.
A JDN push / motorized beam trolley from LGH.
An I beam trolley is a device that rides along the bottom flange of an overhead I-beam, allowing a suspended load—typically attached via a hoist and trolley combination—to travel along a straight or curved path. Trolleys are used in conjunction with chain hoists, lever hoists, or electric hoists to enable lifting and load movement along a beam system.
Whether you’re working in a tight maintenance bay or a large industrial plant, selecting the correct hoist trolley setup is crucial for both performance and safety.
LGH offers multiple types of trolley hoists, each tailored to specific operational requirements:
A manual push beam trolley from LGH.
These simple, cost-effective trolleys are moved manually by pushing or pulling the load. They’re ideal for light to medium-duty jobs and environments where electricity or air power isn’t available.
Commonly paired with a chain hoist and trolley
Quiet, low-maintenance design
Available in capacities from 1 to 10 tons

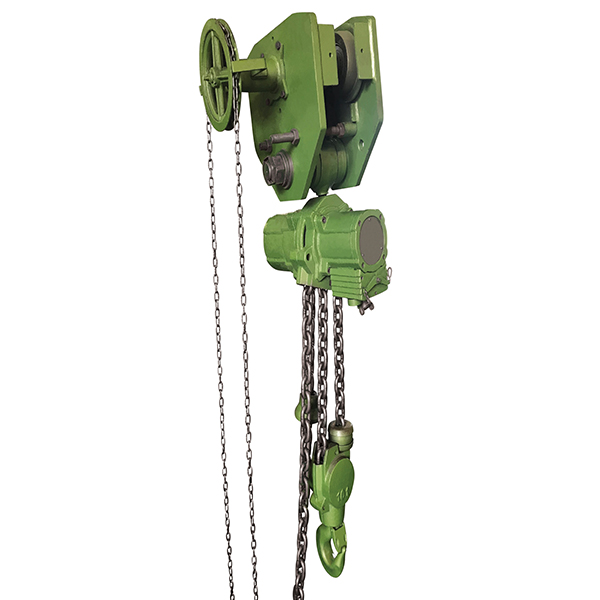

A geared I beam trolley from LGH.
With a hand chain-operated gear mechanism, these trolleys allow for smoother and more controlled movement. Best suited for applications requiring more precise load placement than a push trolley allows.
Ideal for assembly, maintenance, or tight clearance tasks
Compatible with both manual and electric hoists
Frequently used where exact load positioning is needed
A motorized trolley electric chain hoist from LGH.
These trolleys are powered by an electric motor and are often part of an integrated electric hoist and trolley system. Designed for repetitive or heavy-duty applications where manual movement isn’t practical.
Excellent for long-distance travel along a trolley beam
Compatible with beam widths and flange thicknesses of various sizes
Used in production lines, maintenance facilities, and fabrication shops

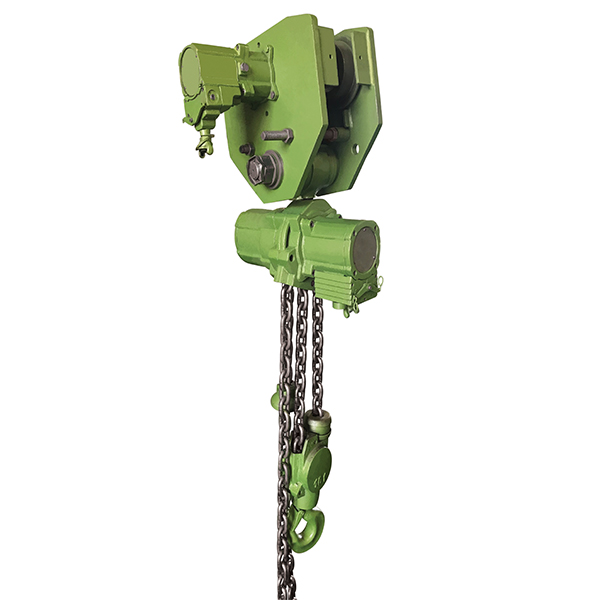

A JDN Profi series motorized trolley air chain hoist from LGH.
Often used in environments where electric power is restricted, pneumatic air-powered trolley hoists operate via a pneumatic motor. These are a perfect match for explosion-proof or spark-sensitive environments.
Combines with air chain hoists for complete pneumatic lifting systems
Reliable, clean operation for sensitive environments
Part of our specialized air hoist and trolley offerings
When selecting a hoist and trolley setup for your project, consider the following:
Capacity: Trolleys range from 1 to 60 tons at LGH. Always match or exceed the weight of the load.
Beam Flange Width & Thickness: Accurate measurements ensure safe and proper trolley installation.
Power Source: Determine whether manual, electric, or air power best suits your jobsite.
Clearance & Travel Distance: Evaluate the space available and how far the load needs to move.
Application Type: From small maintenance lifts to high-cycle production work, there’s a trolley built for the task.
It’s also essential to ensure your trolley hoist is never side-loaded and that the load remains evenly distributed along the trolley beam path. Check out our blog entry “Beam Trolley Fails: Top 4 Mistakes You Should Avoid” to read about other common mistakes when using beam trolleys.
To choose the right I beam trolley, match the trolley’s capacity and adjustment range to the load and the beam where it will be installed. Confirm the load weight, beam flange width and thickness, available headroom, travel distance, operating frequency, and power available at the jobsite before selecting a trolley.
A push trolley may be sufficient for lighter loads and shorter travel distances. A geared trolley provides greater control when precise positioning is required, while an electric or air-powered I beam trolley is generally better suited for heavier loads, frequent operation, or longer travel paths. The trolley must also be compatible with the selected hoist and properly adjusted to the beam.
Before operation, verify that the I beam trolley is installed according to the manufacturer’s instructions and that the hoist, trolley, beam, and supporting structure are suitable for the complete load. Keep the load centered beneath the trolley, avoid side loading, and inspect the entire system before each use.
LGH offers manual, geared, electric, and air-powered I beam trolley rentals in capacities from 1 to 60 tons. Contact an LGH rental representative or call 800-878-7305 for help selecting a trolley and hoist combination that fits your load, beam dimensions, power requirements, and jobsite conditions.
