Point loading occurs when force is concentrated on a small contact area instead of being spread across a broader surface. In lifting, rigging, crane, and hydraulic jacking applications, point loading can overstress equipment, damage the load, deform structural surfaces, or cause ground failure if it is not properly managed.
Understanding point loading is important for crane operations, rigging configurations, hydraulic lifting systems, and any application where force needs to be controlled. A point load may seem like a small detail, but when thousands of pounds are concentrated into one small area, the results can be serious.
A point load is a concentrated force applied to a specific location. Instead of the load being spread evenly across a larger surface, the force is focused on one smaller point.
In lifting and rigging, point loads can occur when a sling rests on the tip of a hook, when a crane outrigger transfers force into a small ground contact area, or when a hydraulic cylinder presses into a surface without proper load distribution.
The goal is not only to know the total load weight, but also to understand where that force is being applied.
Point loading concentrates force into a small area. Distributed loading spreads that force across a wider surface.
For example, a hydraulic cylinder placed directly on a thin floor may create a high point load. Adding a properly sized steel plate or cribbing can spread that same force over a larger area and reduce pressure on the surface below.

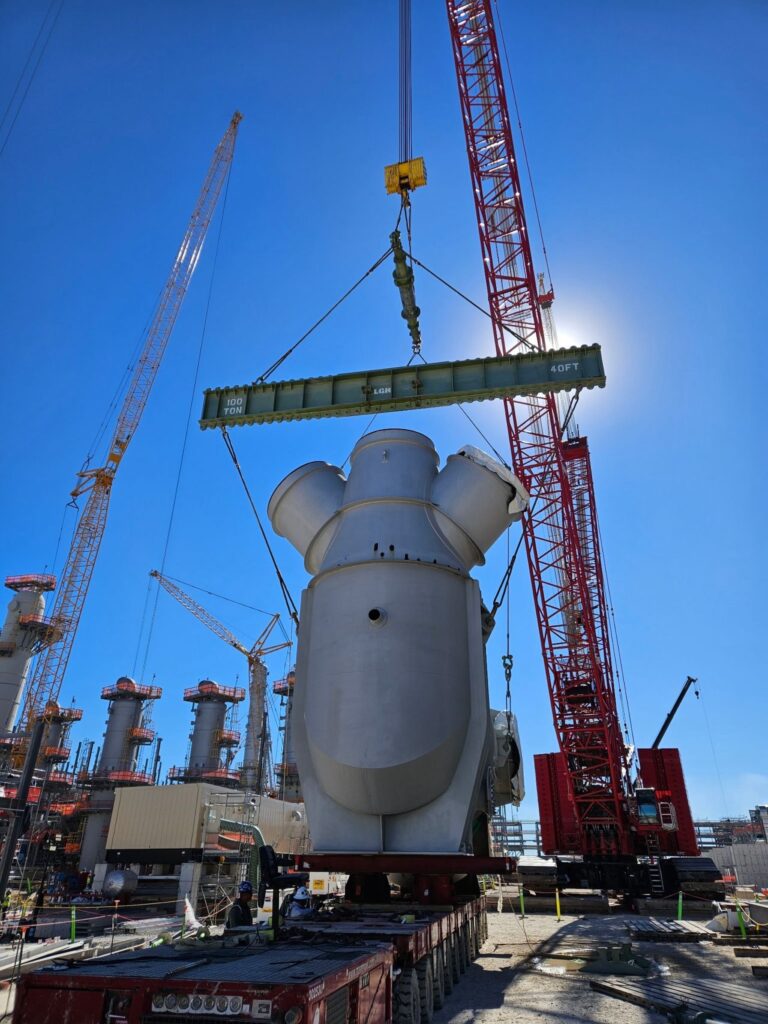

In rigging and lifting applications, distributed loading is often preferred because it helps reduce stress on individual contact points. Outrigger mats, cribbing, base plates, spreader beams, lifting beams, and other load-spreading devices can help distribute force more effectively.
When planning a lift, load distribution matters. If too much force is concentrated on one point, whether that point is a hook, crane outrigger, hydraulic cylinder, or structural surface, the result can include equipment damage, load instability, or structural failure.
Point loading can contribute to:
Proper rigging design helps distribute forces more effectively and keep components within rated capacities.
Point loading can happen in several different parts of a lifting or rigging setup. Three common examples include hook point loading, crane outrigger ground pressure, and hydraulic cylinder base loading.
Each example involves the same basic problem: too much force applied through too small of a contact area.

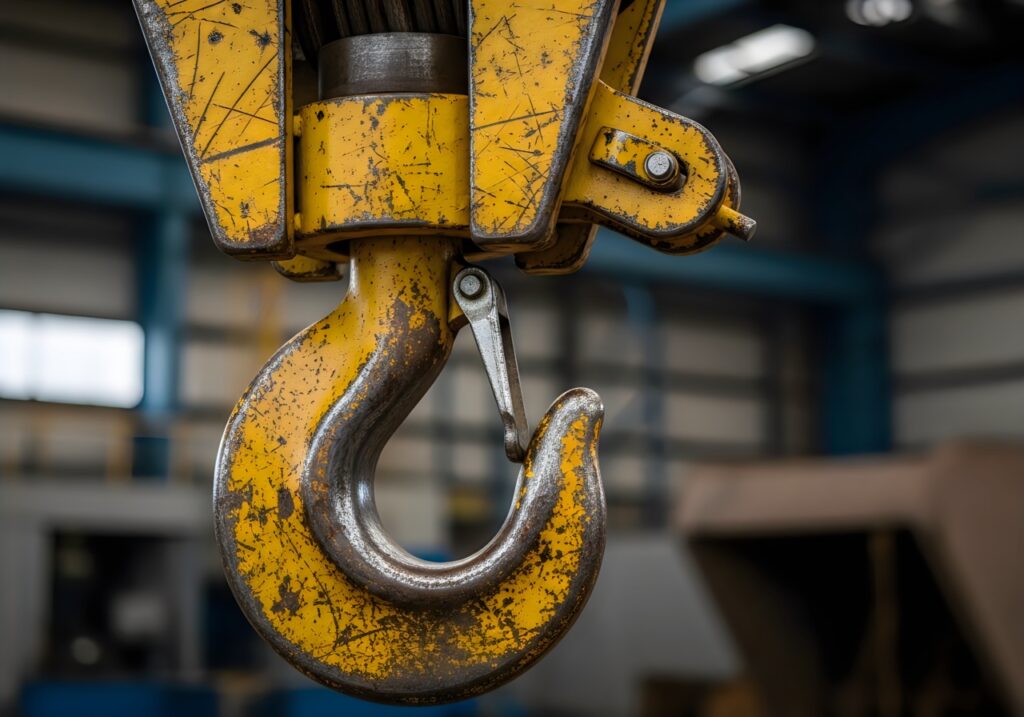

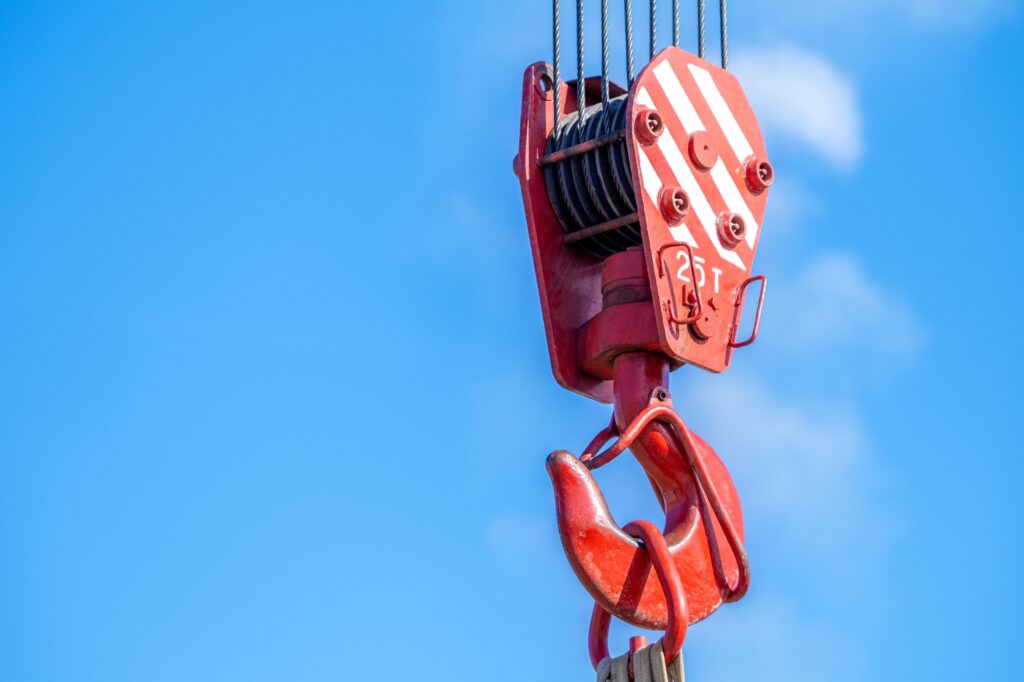

One common example of point loading occurs on crane hooks and hoist hooks.

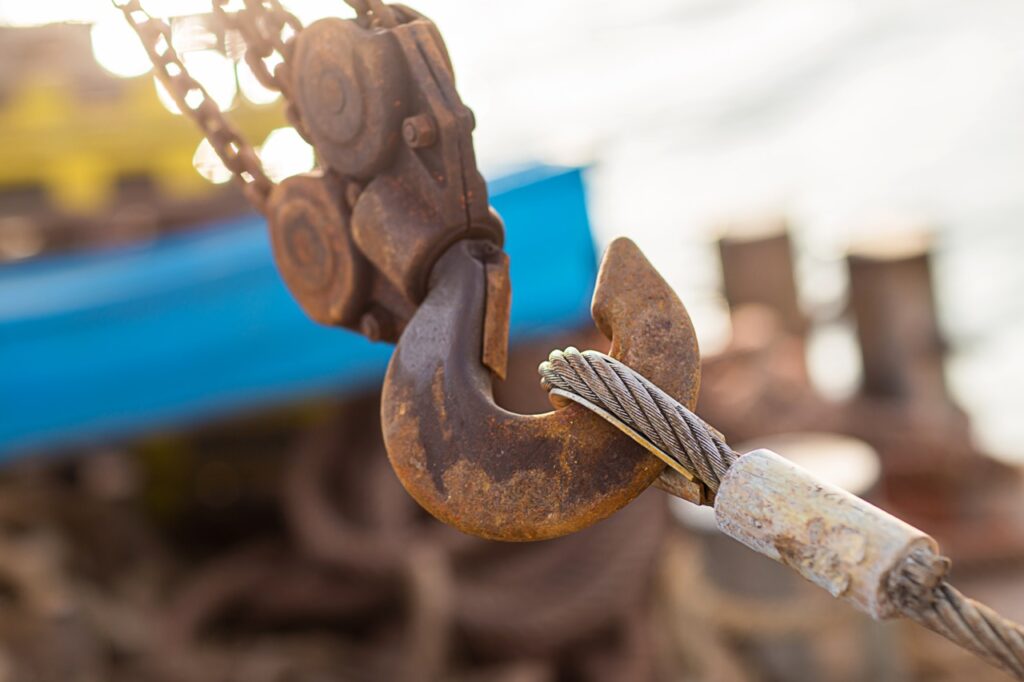

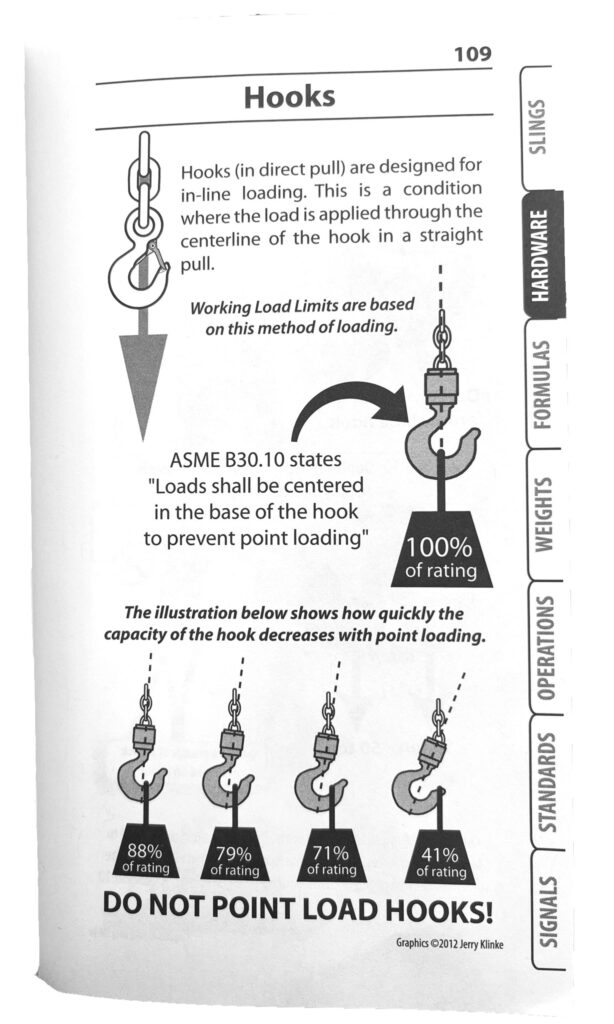

Hooks are designed so slings sit securely in the saddle, which is the curved load-bearing area of the hook. Problems occur when a sling shifts toward the tip of the hook. This concentrates the load at the hook point instead of distributing it through the saddle.
Risks of hook point loading include:
Repeated improper loading, even at lighter weights, can gradually stretch or weaken the hook.
To help prevent hook point loading:
A sling should never be allowed to ride on the point or tip of the hook during a lift.
Point loading can also occur at ground level.
When a crane lifts a load, force transfers through the crane outriggers into the ground below. If that pressure exceeds the ground’s ability to support it, the outrigger can sink, shift, or contribute to crane instability.
Modern cranes are often designed for mobility and may have smaller footprints than expected. Smaller contact areas can increase pressure per square inch, which makes ground conditions and load distribution critical.
Outrigger mats help reduce dangerous point loading by:
Before setting up a crane, crews should evaluate soil conditions, surface strength, outrigger placement, mat size, and the expected load forces.

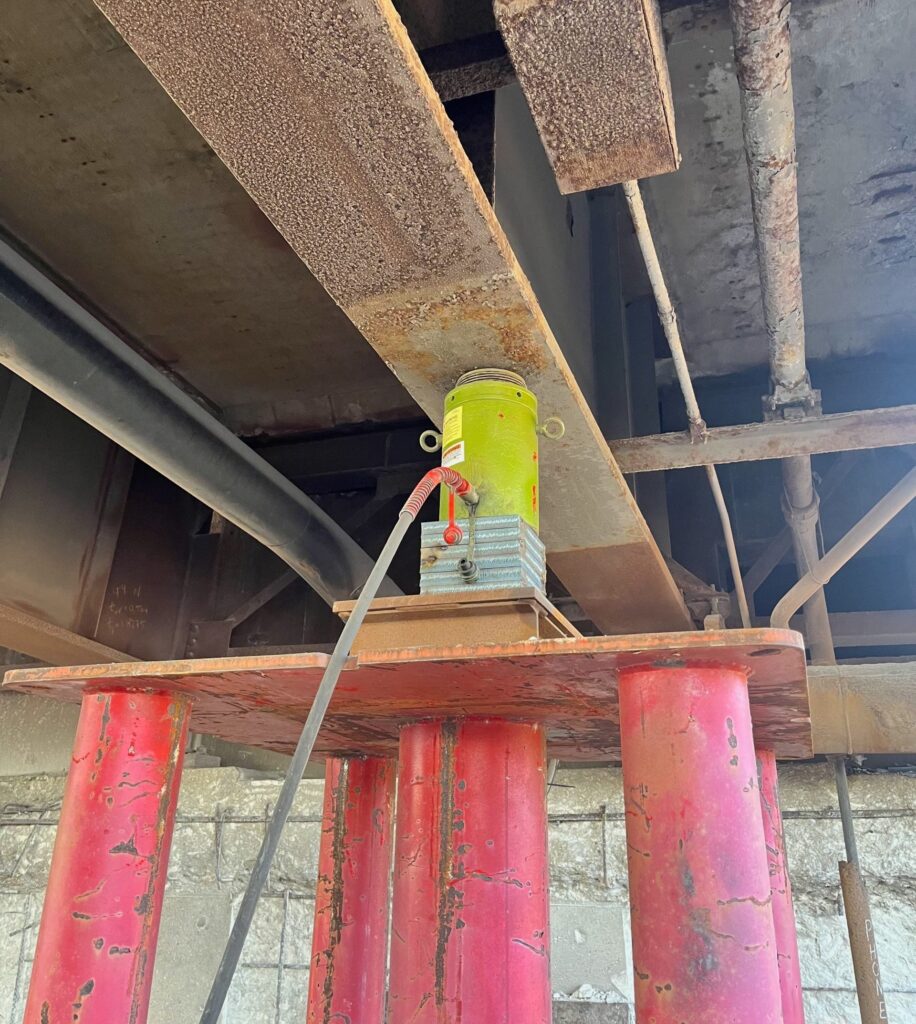

Hydraulic cylinders are powerful lifting tools, but they often apply force through a relatively small footprint. This can create high surface pressure beneath the cylinder.
If the supporting surface cannot handle that pressure, it may crack, sink, shift, or create instability during lifting.
Low-profile or small-base hydraulic cylinders can create high contact pressure because the force is concentrated through a narrow base. This makes proper base support, cribbing, and load distribution especially important.
Solutions for reducing point loading on hydraulic cylinders may include:
Spreading the load helps stabilize the cylinder and protect the surface below. Crews should also confirm that the cylinder remains plumb and aligned throughout the lift.
Failure to account for point loading can result in equipment damage, load imbalance, structural failure, injury risk, and costly jobsite delays.
In crane applications, improper load distribution can affect lift performance and rated capacity compliance. In hydraulic systems, uneven force may create unstable lifting conditions or damage the surface supporting the cylinder.
Point loading is especially important when the contact area is small, the load is heavy, the surface is weak, or the load path is not aligned.
A digital load link can help prevent hook point loading issues.
Understanding actual load forces is an important part of managing point loading. Load monitoring equipment can help crews verify force instead of relying only on assumptions.

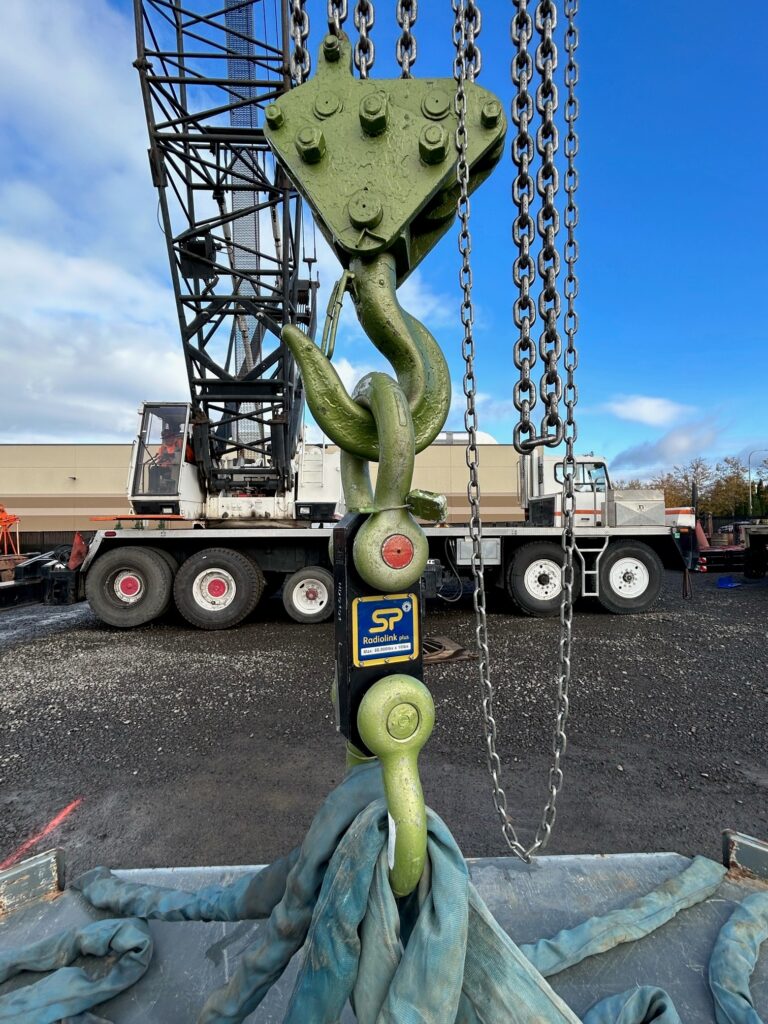

Compression load cells can help measure force beneath a load, making them useful for weighing, center-of-gravity checks, and load distribution verification. Digital load links can measure tension in a rigging leg or lifting line during lifting applications.
Additional best practices to prevent point loading include:
Proper planning helps ensure forces remain within equipment ratings and surface limits.

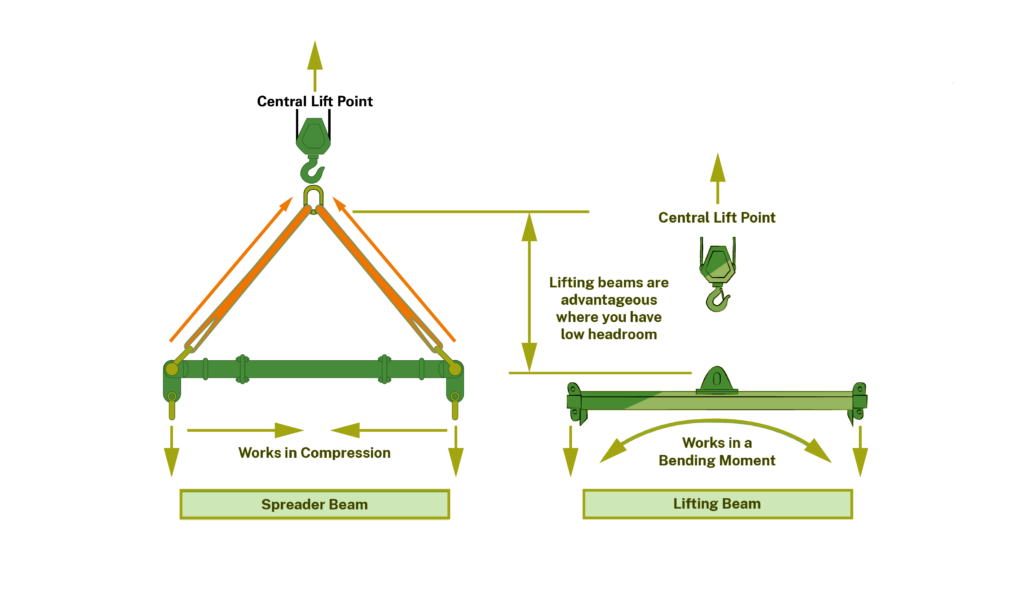

Several types of lifting, rigging, and jacking equipment can help reduce concentrated force by spreading the load more effectively.
Examples include:
The right equipment depends on where the point load occurs and how the force needs to be distributed.
Point loading may seem like a small detail, but it can have a major impact on lifting safety and equipment performance. When force is concentrated in one small area instead of being distributed properly, the risk of equipment damage, load instability, ground failure, or structural failure increases.
Whether the issue involves a sling sitting on the point of a hook, a crane outrigger bearing down on unstable ground, or a hydraulic cylinder applying force through a narrow base, prevention starts with planning. Crews should identify contact points, calculate pressure where needed, inspect equipment, and use the right load-spreading devices for the application.
Outrigger mats, cribbing, base plates, properly selected rigging hardware, compression load cells, and digital load links can all help crews better understand and manage load forces.
For help selecting equipment to reduce point loading on your next lift, contact LGH today or call 800-878-7305 to speak with a rental specialist.
A point load is a concentrated force applied to one small contact area. In lifting and rigging, point loads can occur at hooks, outriggers, hydraulic cylinders, support points, or other locations where force is not spread across a wider surface.
Point loading is the condition created when force is concentrated in a small area instead of being distributed across a broader surface. It can overstress equipment, damage surfaces, or create instability if not properly managed.
A common example is a sling resting on the tip of a crane hook instead of in the hook saddle. This concentrates force on the hook point and can cause deformation, sling slippage, or equipment failure.
Point loading concentrates force on a small contact area. Distributed loading spreads that same force across a larger surface, reducing pressure on any single point. Outrigger mats, cribbing, base plates, and load-spreading devices are commonly used to distribute loads more effectively.
Point loading is dangerous because it increases stress on a small area. This can cause hook damage, surface cracking, ground collapse, equipment instability, or load movement.
Outriggers help transfer crane forces to the ground, while outrigger mats spread those forces over a larger surface area. This reduces ground bearing pressure and helps improve stability.
Point loading in hydraulic lifting can be reduced by using base plates, cribbing, steel plates, or other load-spreading devices. The cylinder should also remain plumb, centered, and supported by a surface that can handle the applied force.
Compression load cells can measure force beneath a load, while digital load links can measure tension in a rigging leg or lifting line. These tools help crews better understand load forces and make more informed lifting decisions.
